SH1-QU
Disinfect with ease! Enjoy a clean experience with our compact scanner.
Wipe down friendly, smooth form with antimicrobial material for continuous clean usage.
By replacing the trigger switch with a touch sensor, we achieved a sleek, flat design. The body’s smooth surface is easy to disinfect with many common cleaning products including alcohol.
This small and sleek model’s compact design is optimized for space efficiency.
SH1 boasts a small and thin profile, making it perfect for long-term tasks and space-efficient operations.
Effortless reading confirmation by selecting beeper, vibration and/or LED light.
If needed, read silently with only vibration and LED indicators, perfect for quiet hospital environments.

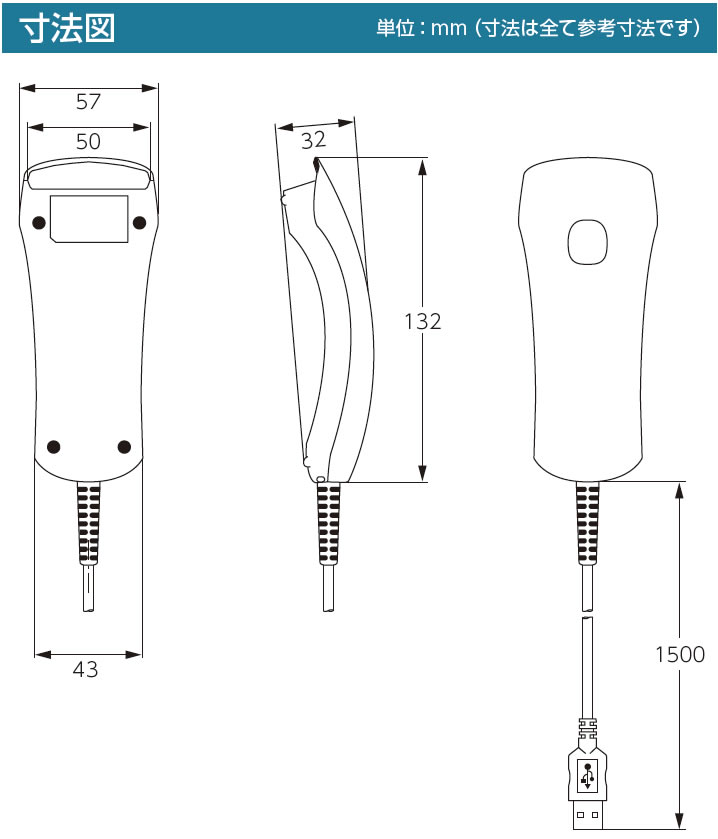

Dimensions
Specifications
| Model | 2D code model | ||||
| SH1-QU | |||||
| Scanner | Method | Area sensor | |||
| Scannable codes | 2D codes | QR Code, SQRC, Micro QR Code, DataMatrix (ECC200), PDF417, Micro PDF417, MaxiCode, Aztec, GS1 Composite | |||
| Barcodes | Barcodes EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5, Standard 2 of 5, Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS) | ||||
| Minimum Resolution | 2D codes | 0.167mm | |||
| Barcodes | 0.125mm | ||||
| PCS value | Over 0.3 | ||||
| Angle | ±50° | ||||
| Scanning confirmation | LED (blue), beeper, vibrator | ||||
| Communication interface | Method | Communication interface Method USB 1.1 (1) | |||
| Connector | USB connector (A type) | ||||
| Cable | Cable 1.5m straight cable | ||||
| Power | Power supply | Supply from the connection (2) | |||
| Environment requirements | Drop impact resistance (3) | 1.5m (on the concrete floor) ×30 times | |||
| Operating temperature | 23 ~ 122°F (-5 ~ 50°C) | ||||
| Operating humidity | 10 ～ 90% RH（without dews and freezing） | ||||
| Operating illumination | Operating illumination 0 to 10,000 lx (Fluorescent lamp in daytime) | ||||
| Weight (excl. cable) | Approx.55g | ||||
|
|||||
Accessories
* Includes Items:
- Main Unit
- User Guide
- Instruction Manual (Please note, the operation manual is not included in the package. It can be downloaded from website.)
| Software | Description | ||
| Active USB-COM Port Driver (free) | USB-COM port driver | ||
| QRkbif (free) | Keyboard interface software converts scanner input into keyboard data | ||
| Scanner Setting 2D (free) | Setting software for 2D scanner series |
All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
SH1-QU Product Sheet
Two-page product sheet with features and benefits.
