QM30 Stationary Scanner
An ultra-compact scanner for 1D and 2D codes. Its ideal applications include healthcare, pharma, and retail.
Key Benefits
Our Smallest Scanner
DENSO’s advanced technology reduces the lens size and provides trouble-free scanning in a module that is one-fourth the size of the QB30 and weighs a mere 18g (0.64oz).
Works in Other Devices
At only 3.5 cm wide, the compact QM30 makes scanning possible for devices previously denied the capability, such as ATMs and money exchanging machines, POS registers, ticketing machines, and coin counters.
Supports Security
The QM30 works with Secure QR Codes (SQRC) to support verification of authorized member ID cards and similar applications.
Smartphone Compatible
The QM30 scans codes displayed on smartphones for payment purposes. It also scans codes printed on paper.
Dimensions
Specifications
| Model Number | QM30-SS | QM30-SU |
Scanner |
||
| Readable 2D Codes | QR Code, Micro QR Code, SQRC, DataMatrix, PDF417, Micro PDF417, Aztec | |
| Readable 1D Barcodes | EAN-13/8, UPC-A/E, UPC/EAN (Add-on embedded), Interleaved 2 of 5 (ITF), Codabar (NW-7), CODE39, CODE93, CODE128 (EAN-128), GS1 DataBar (RSS) | |
| Minimum Resolution 2D Codes | 0.167mm | |
| Minimum Resolution 1D Barcodes | 0.125mm | |
| Image Sensor | 480,000-pixel CMOS | |
| Lighting | Red LED | |
| Marker | Red LED | |
| Field of View | Horizontal: 40°, Vertical: 30° | |
| LCD Code | Supported | |
| PCS Value | 0.30 or higher | |
| Angle | ±50° | |
| Skew Angle | 360° | |
Communication Interface |
||
| Interface | Serial (TTL level) | USB 2.0 compliant (COM, HID) |
| Connector | 8-pin board to wire connector | USB connector, micro USB |
Power |
||
| Current Consumption | 5 VDC ±5%, 500 mA (scanning), 180 mA (standby) | |
Operating Environment |
||
| Temperature Range | -10° to 50°C | |
| Humidity | 10 to 90% RH (non-condensing, non-freezing) | |
Other |
||
| Dimensions | 35.0 x 34.4 x 18.0 mm | |
| Weight | Approx. 18g | |
|
||
Scanning Range and Field of View
Optional Accessories – Sold Separately
Communication | Part # |
|
| Cable | Straight 1.4m USB cable. Type A Male - micro B Male | CB00-US1/4A-4MB |
| Cable | Straight 1.5m USB cable. Type A Male - micro B Male | CB00US15/4A-5MB |
| Serial Connection Cable | CBM3-TS300/8 | |
Related Software
Software
Description
Part #
Scanner Setting 2D Setting software for 2D scanner series Free download
All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
Downloads
Two-page product sheet with features and specifications for the QM30 stationary scanner. 12-page brochure featuring DENSO scanners, terminals and software Folleto de 12 páginas presentando los productos DENSO ADC: escáneres, terminales, herramientas y aplicaciones

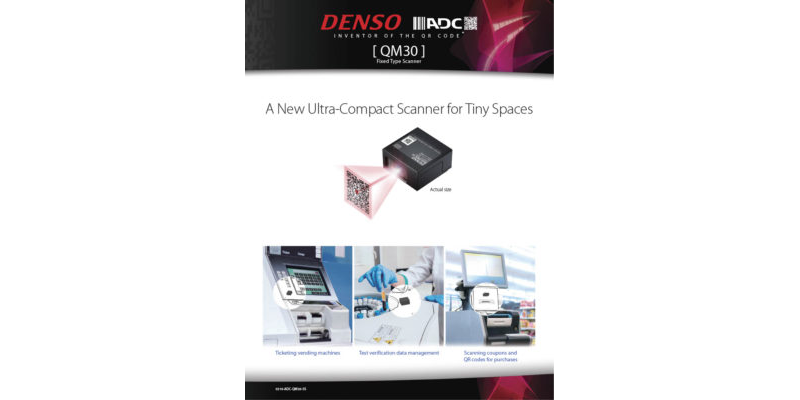

QM30 Product Sheet
