QB33
Optimize your space with our Stationary and Embedded scanner.
Scanners designed for stationary and embedded use across multiple applications
Many facilities have boosted efficiency by implementing kiosk terminals and entry gates. The QB33 serves as an excellent stationary and embedded scanner for 1D and 2D codes. Just present the code to the scanner to complete scanning, promoting labor savings and reducing congestion.
Efficient use of space paired with improved reading performance
Maximize space with wide-angle scanning!
The combination of a small body and wide-angle lens allows for space-saving installation without needing to increase the distance from the target. Ideal for kiosks and checking terminals, it reduces installation space and enhances flexibility.
Enhanced scanning performance that even captures poor-quality codes
With our unique QR code reading algorithm, created by the original developers of the QR Code, you can read even poorly printed QR codes.
Enjoy robust security with our SQRC®-enabled solution
For applications needing to prevent personal information leaks, SQRC® is the optimal choice.
SQRC® is a type of QR code that can hold both “public data” and “private data.” Only a dedicated reader with an encryption key can read the private data, ensuring data protection.
For more details about SQRC®, please click here.
Built to withstand semi-outdoor conditions, ensuring reliable performance
Assured Protection from Dust and Water
Meets IEC international standard protection rating IP54. Shields against rain and dust in semi-outdoor settings. Integrate with peace of mind.
Reliable Operation from -4 to 122°F
Supports an operating temperature range of -4 to 122°F (-20 to 50°C). Ideal for semi-outdoor entry gates.
Configuration Software for Easy Integration
Simplify Integration with Quick Setup
Effortless Batch Configuration with “QB Setting”. Create batch setup QR Codes once, then scan the Codes with the additional QB33 devices for instant setup. Cut down on the complexity and labor of configuring multiple devices.

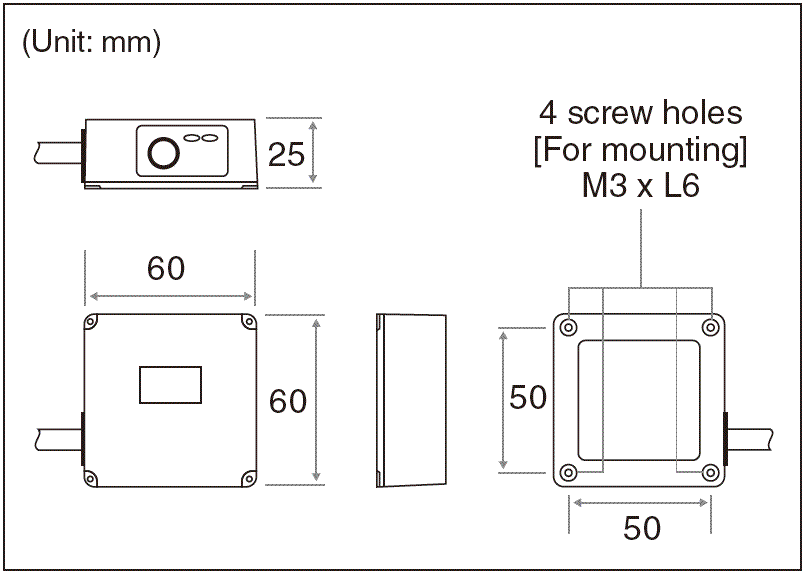

Dimensions
Specifications
| Model | QB33-SR | QB33-SU | ||
| (RS-232C model) | (USB model) | |||
| Scanner section | Readable codes | 2D code | QRcode, Micro QRcode, SQRC, DataMatrix(ECC200), PDF417, MicroPDF417, Maxicode, Aztec, GS1 Composite | |
| Barcode | EAN-13/8(JAN-13/8), UPC-A/E, UPC/EAN with add-on, Interleaved 2 of 5, CODABAR(NW-7), CODE39, CODE93, CODE128, GS1-128, GS1 Databar | |||
| Minimum | 2D code | 0.20mm | ||
| resolution | Barcode | 0.15mm | ||
| Standard Scanning Distance | 40mm | |||
| Field of View ⁽¹⁾ | 62mm × 39mm | |||
| Lighting | White LED | |||
| Scan Confirmation | LED | 1 color (Blue, Green, Red) | ||
| Buzzer | 3-step volume control, 3-step tone control | |||
| Interface | Interface | RS-232C（Mini D-sub15PIN Female) ⁽²⁾ | USB | |
| Cable Length | 0.5m | 2m | ||
| Power | Power Voltage | 5V | ||
| Power supply | Supply from the host device | |||
| Auxiliary Function | Button | 1 Button (Magic key) | ||
| Environmenl | Operating temperature | -20～50°C | ||
| Security level | IP54 | |||
| Color（front） | White | |||
| Approximate Weight | 120g | 150g | ||
|
||||
Related Software
| Software | Description | Part # |
| Active USB-COM Port Driver | USB-COM port driver | Free download |
| QB Setting | Setting software for QB30 series | Free download |
| QR-kbif | Keyboard interface software converts scanner input into keyboard data | Free download |
All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
Optional Accessories – Sold Separately
| Communication | Part # | |
| Cable | Convert 15 pin Male to 9 pin Female. Power from AC adapter (not included). | CBQ3RS200015901 |
| Power and Charging | ||
| AC Adapter | Output: DC 5V - 1.5A Input: 100 to 240 V AC ±10%. For Brazil only. | AD2-3005/3000 |
| AC Adapter | Output: DC 5V - 1.5A Input: 100 to 240 V AC ±10%. For USA, Canada and Mexico. | AD2-2005/300003 |
Set contents
- Main unit
- Operation guide
- User’s manual (Operation Manual is not included. It can be downloaded from the website.)
