FD2
A versatile stationary scanner that supports a wide range of applications ensuring you never miss a detail: Read from very small codes of .06mm cell size and Read Distances from 50mm (2 inches) to 120 cm (4 feet) extended-range scanning,
The FD2 is a stationary scanner equipped with a 2-megapixel high-resolution sensor, delivers consistent reading from codes on minuscule parts to those on larger components. Its compact, palm-sized design makes it perfect for tight spaces, and it’s loaded with features to handle diverse tasks, aiding in the digital transformation of manufacturing environments.
rMQR Code® Ready
The FD2 is equipped to read the innovative rMQR Code®, perfect for printing in tight, narrow spaces, broadening its usability.
All-in-One Code Reading Solution
No need to choose lenses or lighting based on the task.
- Integrated design with autofocus lens, high-brightness lighting, and anti-reflection filter.
- Compact and space-saving, aiding in the downsizing of production lines.
Effortless Optimal Reading in 3 Steps
- Autofocus adjusts based on installation distance.
- Automatically identifies and adjusts the best settings from around 2 million combinations, including brightness, reflection control, and filters.
- Controls polarization to automatically set optimal conditions for materials with strong surface reflections like brushed metal, cylindrical surfaces, and materials with weak reflections like cast surfaces.
Optimized for Your Production Line with Two Flexible Options
- Versatile Standard View Model: Perfect for reading various workpieces from the side or high positions on your line. Plus, we offer a Wide View High-Resolution Model for closer, more compact environments.
- High-Resolution Imaging: Equipped with a 2-megapixel CMOS image sensor, it handles everything from tiny workpieces to almost 4 feet distance reading.
- Advanced Lighting System: The aluminum-coated reflector ensures ultra-high-definition and crystal-clear imaging.
Accurate Reading of Even the Most Challenging Codes
- Tiny, Damaged, Curved, or Deformed Codes: Our technology ensures dependable reading of even the most challenging codes.
- Superior Label Reading: Clears up noise from label material, dirt, scratches, or discoloration, dramatically boosting the reading rate of damaged labels.
Additional Convenient Features
- Large LED Display: Quickly check operational status with our large, easy-to-read LED display.
- Intuitive Guide Markers: Align positions effortlessly with our intuitive guide markers.
- Reliable Operation Support: “Reading Stability Output” and “Print Verification” functions ensure smooth and dependable operation.

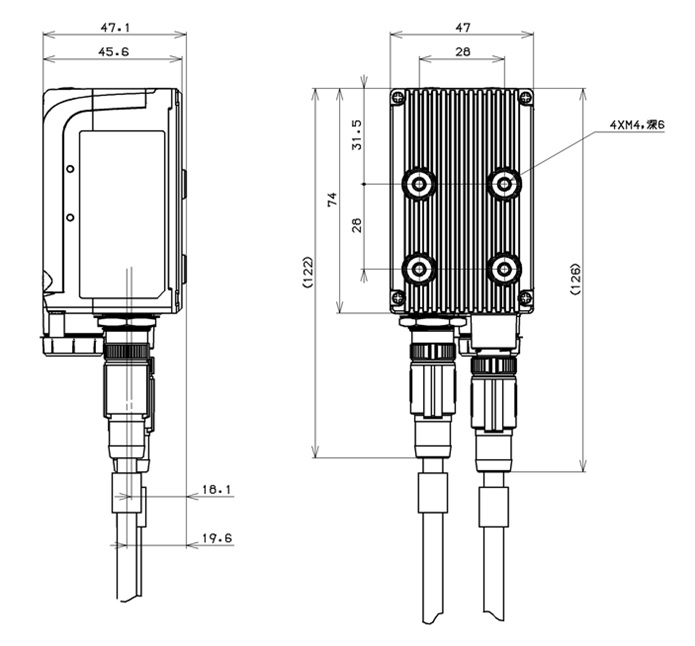

Dimensions
Specifications
| Type | Standard View Model | Wide View model | ||
| Model | FD2-HS1000-ERU | FD2-HW1000-ERU | ||
| Scanner Section | Sensors | Image sensor 1600 x 1200 pixels | ||
| Symbologies | 2D Code | Symbologies 2D Code QR code, SQRC, micro QR code, rMQR code, DataMatrix (ECC200), PDF417, Micro PDF417, MaxiCode, GS1 Composite (GS1 DataBar Composite) |
||
| Barcode | EAN-8/13, UPC-A/E (with add-on), CODE39, CODABAR (NW-7), | |||
| Interleaved 2 of 5, CODE128, GS1-128 (EAN-128), RSS (GS1 DataBar) | ||||
| Minimum Resolution | 2D Code | 0.06 mm | ||
| Barcode | 0.08 mm | |||
| Read Distance | 110~1200mm | 50~720mm | ||
| Reading field | Reading field 185 x 148 mm 384 x 307 mm (at reading distance of 600 mm) (at reading distance of 600 mm) | Reading field 185 x 148 mm 384 x 307 mm (at reading distance of 600 mm) (at reading distance of 600 mm) |
||
| Adjustment | Autofocus, lighting and filter autotuning | |||
| Number of reading condition settings | 16 | |||
| Communication | Interface | Ethernet, RS-232C | ||
| Industrial Protocols | EtherNet/IP and ORiN compatible | |||
| Control Input/Output | 2 inputs, 3 outputs | |||
| Input Power | DC24V±10% | |||
| Protection Class | Protection rating | IP65 | ||
| Operating temperature range | 14~113°F (-10~45°C) | |||
| Vibration resistance | Frequency 10-500Hz, sweep 11 minutes, single amplitude 0.75mm (acceleration upper limit 100m/s2) | |||
System Configuration
Related Software
| Software | Description | ||
| Scanner Setting F | Setting software for F scanner series | ||
| Active USB-COM Port Driver (free) | USB-COM port driver |
All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
