BHT-1300 Basic OS Series
A Basic OS Terminal for extended operation, ideally suited for the field and applications in warehousing, manufacturing, and retail settings. Get the added assurance of a free, three-year warranty when you register your purchase.
If you are looking for a Windows OS solution, visit our BHT-1300 Windows OS Series page.
A Pleasure to Use
Easy Handling
Thin and lightweight, the BHT-1300 offers powerful functionality in a compact and aesthetic package. Dome-shaped keys enhance accurate entry, even with gloved hands.
Clear as Day
A bright LCD display affords excellent visibility in all ambient light levels, even bright sunlight. The screen is also viewable at an angle, enhancing the user’s ease.
Extended, Secure Operation
Power-saving design allows “longest in class” consecutive operation of 40 to 42 hours (21 to 23 hours with slim battery). Compliance with IP54 wireless security standards prevents unauthorized and illegal access.
Durable, Dependable, Diverse
Toughness Built In
The BHT-1300 resists drop impacts from a height of two meters (6.5 feet) and performs well in ambient temperatures ranging from -20° to 50°C (-4°F to 122°F).
Multiple Applications
Sleek aesthetics make the BHT-1300 a good fit for gentle and comfortable use in retail environments. Durability and extended operation make it equally valued in more challenging applications around logistics and industrial processes.
Universal Operation
The BHT-1300 can be used in more than 40 countries worldwide, supporting multiple language displays including English, Japanese, Chinese, Korean, and Thai.
Data Backup, Emergency Startup
You can back up stored data by inserting a microSDHC memory card. With the optional battery adapter you can perform emergency start-up from battery.

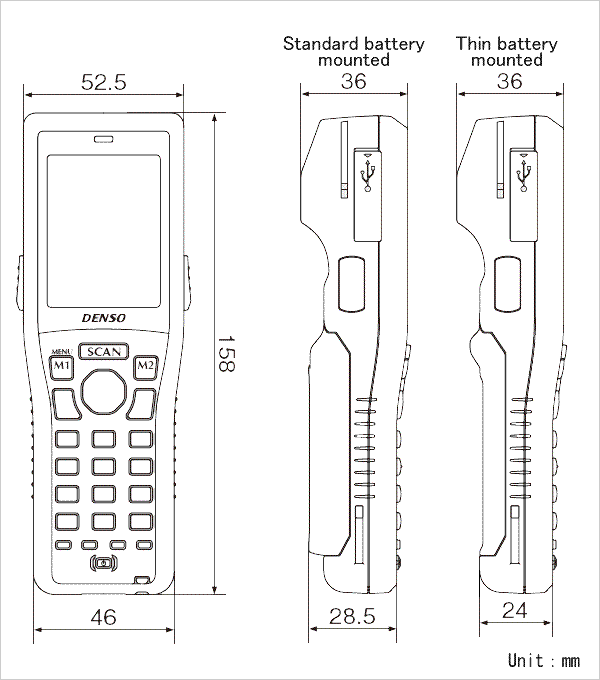

Dimensions
Specifications
| Model Number | BHT-1306B | BHT-1306Q |
System |
||
| Operating System | BHT OS | |
| CPU | 32bit RISC microprocessor | |
| Flash Memory | 64MB (45MB for user area) | |
| Card Slot | MicroSD or MicroSDHC (32GB) x 1 (FAT32 compliant) | |
Display |
||
| Resolution | QVGA (240 x 320 px) | |
| Display System | Color LCD | |
| Displayable Characters 16px font (3) | 15 (2-byte characters) x 20 rows, 30 (1-byte characters) x 20 rows | |
| Displayable Characters 24px font (3) | 10 (2-byte characters) x 13 rows, 20 (1-byte characters) x 13 rows | |
| Backlight | White LED | |
Scanner |
||
| Method | Advanced Scan Plus (CCD) | Area Sensor |
| Readable 2D Codes | QR Code, Micro QR Code, SQRC, iQR Code, PDF417, Micro PDF417, MaxiCode, DataMatrix (ECC200), GS1 Composite | — |
| Readable 1D Barcodes | — | EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-on), Interleaved 2 of 5 (ITF), Standard 2 of 5 (STF), Codabar (NW-7), CODE39, CODE93, CODE128, GS1-128 (EAN-128), GS1 DataBar (RSS) |
| Minimum Resolution 2D Codes | — | 0.167mm |
| Minimum Resolution 1D Barcodes | 0.125mm | |
| Reading Reference Position | 50mm | 100mm |
| Marker | — | Area Guide Marker |
| Scanning Confirmation | LED light (blue, green and red), Sound and Vibration | |
| Keypad | 21 keys (including power key) + cross-hair cursor key + 3 trigger keys | |
Communication |
||
| Optical Interface Communication Mode | Infrared ray (IrDA Ver.1.2 [low power] physical signaling layer-compliant) | |
| Optical Interface Transmission Speed | Up to 115.2kbps, 460.8kbps | |
| Optical Interface Communication Distance | Max. approx. 0.15m | |
| Cable Interface | USB Ver.2.0 (USB microB) | |
Power Supply |
||
| Main Battery | Lithium-ion Battery, Three AAA alkaline batteries. Battery adapter required (sold separately) | |
| Operating Time Slim Battery (8) | 57 hours | 55 hours |
| Operating Time Standard Battery (8) | 98 hours | 95 hours |
| Operating Time AAA Alkaline Batteries (8) | 55 hours | 45 hours |
Environmental Requirements |
||
| IP Rating | IP54 | |
| Drop Test (6) | 2.0m drop on concrete floor, 1.2m height over a concrete floor with each of 6 sides of the enclosure facing down (60 times total) | |
| Temperature Range (5) | -20 to 50°C | -20 to 50°C |
Physical Characteristics |
||
| Weight (with slim battery) | Approx. 188g | |
| Weight (with standard battery) | Approx. 206g | |
Other |
||
| Add'l Functionality | Clock, battery, and voltage indicators, keypad backlight, remote wakeup | |
|
||
**All specifications subject to change without notice. |
||
Optional Accessories – Sold Separately
Batteries and Accessories | Part # |
|
| Attachment Case | Compatible with BHT1306 BHT OS Series only | B-130D |
| Battery and Cover | Bundled BT-130LA battery (1,100mAh) and cover. Compatible with BHT1306 BHT OS Series only. | BT-130LA-C |
| Battery and Cover with Magnet | Bundled BT-130LA battery (1,100mAh) and cover with magnet. Compatible with both BHT-1306 BHT OS and BHT-1361-CE Series. | BT-130LA-CE+C |
| Compact Lithium-ion Battery | 1,100mAh rechargeable | BT-130LA |
| Slim Battery Cover | Compatible with BHT1306 BHT OS Series only | BCBHT-130LA |
| Slim Battery Cover | Compatible with both BHT-1306 BHT OS and BHT-1361-CE Series | BCBHT-130LA-CE |
| Standard Battery Cover | Compatible with BHT1306 BHT OS Series only | BCBHT-130L |
| Standard Battery Cover | Compatible with both BHT-1306 BHT OS and BHT-1361-CE Series | BCBHT-130L-CE |
| Standard Lithium-ion Battery | 1,880mAh rechargeable | BT-20LB |
| Standard Lithium-ion Battery and Cover | Bundled BT-20LB rechargeable battery (1,880mAh) and cover. Compatible with BHT-1306 BHT OS Series only. | BT-130L-C |
| Standard Lithium-ion Battery and Cover with Magnet | Bundled BT-20LB rechargeable battery (1,880mAh) with cover with magnet. Compatible with both BHT-1306 BHT OS and BHT-1361-CE Series. | BT-130L-CE+C |
Charging Station |
||
| AC Adapter | Output: DC 12V - 4.16A Input: 100 to 240 V AC ±10%. For Brazil and Europe. | AD3-3012/3000 |
| AC Adapter | Output: DC 12V - 4.16A Input: 100 to 240 V AC ±10%. For USA, Canada and Mexico. | AD3-2012/300002 |
| AC Adapter | Output: DC 5V - 1.5A Input: 100 to 240 V AC ±10%. For Brazil only. | AD2-3005/3000 |
| AC Adapter | Output: DC 5V - 1.5A Input: 100 to 240 V AC ±10%. For USA, Canada and Mexico. | AD2-2005/300003 |
| Four-slot External Battery Charger | To charge BT-110LA, BT-110L, BT-130LA or BT-20LB batteries. Charge up to four batteries at the same time. AC adapter not included. | CH-1104 |
| Four-slot Terminal Charger | Charge up to four terminals at the same time. AC adapter not included. | CH-1354 |
| Single-slot External Battery Charger | To charge BT-20LB or BT-130LA batteries. AC adapter not included. | CH-201B |
Communication Station |
||
| AC Adapter | Output: DC 5V - 1.5A Input: 100 to 240 V AC ±10%. For Brazil only. | AD2-3005/3000 |
| AC Adapter | Output: DC 5V - 1.5A Input: 100 to 240 V AC ±10%. For USA, Canada and Mexico. | AD2-2005/300003 |
| Cable | Straight 14m USB cable. Type A Male - micro B Male | CB00-US1/4A-4MB |
| Cable | Straight 14m USB cable. Type A Male - Type B Male | CB00US14004A4B1 |
| Cable | Straight 15m RS-232C | CB00RS1500/9901 |
| Cable | Straight 15m USB cable. Type A Male - micro B Male | CB00US15/4A-5MB |
| Direct Connect Cable | For the communication between the unit and PC. USB cable: Type A Male - BHT1306 connector. Charging through USB available. | CB-1306-DCUSB |
| Single-slot Ethernet Cradle | For communication and battery charging. Ethernet cable and AC adapter not included. | CU-1311 |
| Single-slot Serial RS232C Cradle | For communication and battery charging. For BHT1306 DENSO OS Series only. RS232 Cable and AC adapter not included. | CU-1301 |
| Single-slot USB Cradle | For communication and battery charging. USB cable and AC adapter not included. | CU-1321 |
Other Accessories |
||
| Belt Holster | Belt not included | WHBHT-1300 |
| Hand Strap - Black | HS-DENSOBLK | |
| Head Protector | For terminals with 2D scan engine. Increase resistance to 2.5m height drop over a concrete floor. | HPBHT-1300Q |
| Head Protector | For terminals with 1D linear imager scan engine. Increase resistance to 2.5m height drop over a concrete floor. | HPBHT-1300B |
| Neck Strap | NS-BHT1300 | |
| Soft Case | SCBHT-1300 | |
| Touch Scanning Attachment | EA-13B | |
Related Software
Software for BHT-1306 | Description | Part # |
| Active USB-COM Port Driver | USB-COM port driver | Free download |
| BHT-1300 EZ Pack | Application development software made simple | Free download |
| BHT-BASIC 4.0 Development Pack | Software tool for developing applications | SWBHT-BSC4-DEV |
| BHT-BASIC4.0 Transfer Utility | Software communication between BHT and PC | SWBHT-BSC4-TRU |
| BHT-Browser | Browsing software to use wireless BHT as WEB client | SWBHT-BROWSE-DN |
| BHT-Term Emulator | Emulation software to enable a wireless BHT to function as a terminal in online transaction processing (OLTP) run by AS/400, etc. | SWBHT-TERM-EM |
| SDK BHT-C | Software Development Kit (SDK) to develop app with C language. Free compiler ÒSourcery G++ Lite 2010.09-51 for ARM EABIÓ from CodeSourceryÓ is available. | Free download |
| Transfer Utility DLL Pack (5) | DLL for communication between BHT and PC | SW-TUDLL5PACK |
All software can be downloaded from DENSO Wave’s QBdirect. Free software and drivers can be used immediately. Other software packages are available as trials. Please contact DENSO ADC to purchase a full license.
